Sperry ULTRA-THIN Meters

The most precise meters on the market!

AC Voltage: ± (1.1% + 3)
DC Voltage: ± (0.6% + 2)

AC Current: ± (1.6% + 3)
DC Current: ± (1.1% + 3)

Resistance: ± (1.0% + 1)

The most precise meters on the market!

Voltage — AC: ± (1.1% + 3)   DC: ± (0.6% + 2)
Current — AC: ± (1.6% + 3)   DC: ± (1.1% + 3)
Resistance — ± (1.0% + 1)

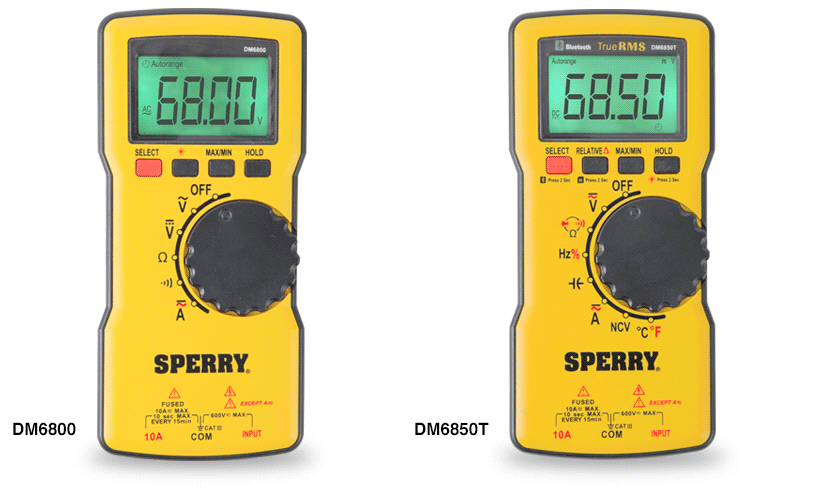

Sperry's new "ULTRA-THIN" meters are top of the line!

Less than 3/4 inch thick, this is the thinnest full sized multimeter yet. Engineered to exceed the expectations of the professional electrician, the Sperry Instruments ULTRA-THIN Meter family offers a durable and ergonomic impact resistant design.

CAT III (600V), ETL listed to UL and CSA standards and CE rated with a limited lifetime warranty to give our users the peace of mind they deserve.

Bluetooth functionality – Download the free Sperry Smart Meter App. Use smart meter functionality to view, monitor, capture pictures and data log the date/time stamped readings to smart phones and tablets

  • GPS location linking feature tracks where recordings are being measured
  • Increased safety - Functionality allows for measurements to be taken without being in or near panel
  • Export test results via Bluetooth to easily share with yourself and others
  • Measure and record data over time without having to be near the meter
  • Meter includes removable probe clips for remote measurements

Temperature measurement – Use included thermocouple to record temperatures from -4˚F to 1832˚F

Built-in non-contact voltage detection functionality for quick checks for the presence of AC voltage without having to use test leads

Features:
  • Backlit 1999 Count LCD screen
  • Thin design for easy use, storage, and transportation
  • ETL listed to UL and CSA standards
  • Min/Max function to hold either minimum reading or maximum reading on the display
  • Instant Continuity Buzzer
  • Data hold feature captures reading on the display
  • Auto power off and low battery indicator

Comparison Chart

DM6800 DM6850T
AC/DC Voltage (V) 600 600
AC/DC Current (A) 10 10
Resistance (Ω) 40M 40M
Audible Continuity
NCV
Capacitance
Diode
Frequency
Temperature with included K-type thermocouple
Auto/Manual Ranging Auto Auto
TRMS
Bluetooth®
Data Logging
Backlit
Data Hold
Relative Measurement
Min/Max
Low Battery Indicator
Auto Off
GPS location linking
Thin Design – less than 3/4" thick
Industry standard 40" CAT II/II 600V
Probes
Soft case
Removable probe clip
Agency Approvals
Cat Rating
Lifetime/Warranty Lifetime Warranty Lifetime Warranty

Comparison of meter thickness
WHICH WOULD YOU RATHER CARRY?
Typical = 1-3/4" thick
Sperry = less than 3/4" thick

Leads and storage case are included.
Both Thin Meters include:
Soft storage case
Industry standard probes

Accessories
DM6850T also includes:
Probe clips
Thermocouple

Comparison Chart

DM6800
AC/DC Voltage (V) 600
AC/DC Current (A) 10
Resistance (Ω) 40M
Audible Continuity
Auto Ranging
Backlit
Data Hold
Min/Max
Low Battery Indicator
Auto Off
Thin Design – less than 3/4" thick
Industry standard 40" CAT II/II 600V Probes
Soft case
Lifetime Warranty



DM6850T
AC/DC Voltage (V) 600
AC/DC Current (A) 10
Resistance (Ω) 40M
Audible Continuity
NCV
Capacitance
Diode
Frequency
Temperture with included K-type thermocouple
Auto Ranging
TRMS
Bluetooth
Data Logging
Backlit
Data Hold
Relative Measurement
Min/Max
Low Battery Indicator
Auto Off
GPS Location Linking
Thin Design – less than 3/4" thick
Industry standard 40" CAT II/II 600V Probes
Soft case
Removable probe clip
Lifetime Warranty



Comparison Specs



ITEM # UPC ITEM DESCRIPTION SIZE QTY/CLAM QTY/MASTER
DM6800 035632201068 Digital Multimeter, Thin,
Autoranging
7" x 3.2" x 0.69" 1 2
DM6850T 035632201075 Digital Multimeter, Thin,
TRMS, Bluetooth
7" x 3.2" x 0.69" 1 2

Trademarks: The Bluetooth® word mark and logos are registered trademarks owned by the Bluetooth SIG, Inc. and any use of such marks by Sperry Instruments is under license. Other trademarks and trade names are those of their respective owners.
