Scan-Test 5-in-1 Multi-Scanner.

Part # PD6902

Locate studs, metal or AC voltage behind the wall before cutting or nailing. Whether searching for studs or simply installing bracing, knowing what More...

WHERE TO BUY
Out of Package Height (in) 7.25
Out of Package Width (in) 1
Out of Package Length/Depth (in) 2.5
Each in Package Height (in) * 1.8
Each in Package Width (in) * 5.7
Each in Package Length/Depth (in) * 10.6
Each in Package Weight (oz) * 8
RoHS Compliant (Restriction of Hazardous Substances Directive) ° Contact Compliance
Color Yellow

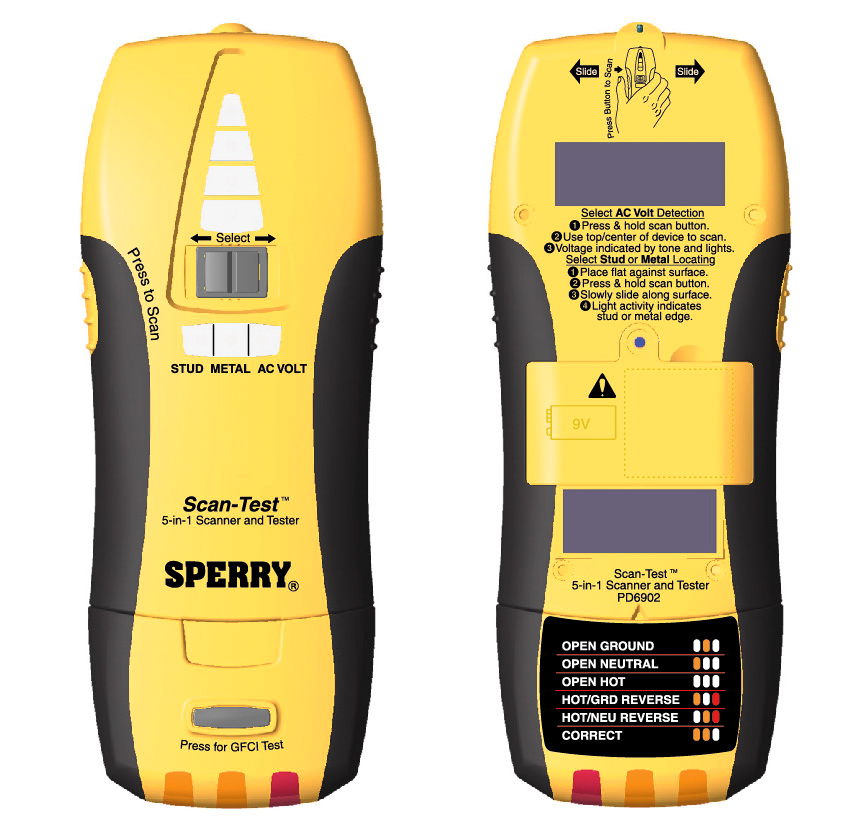

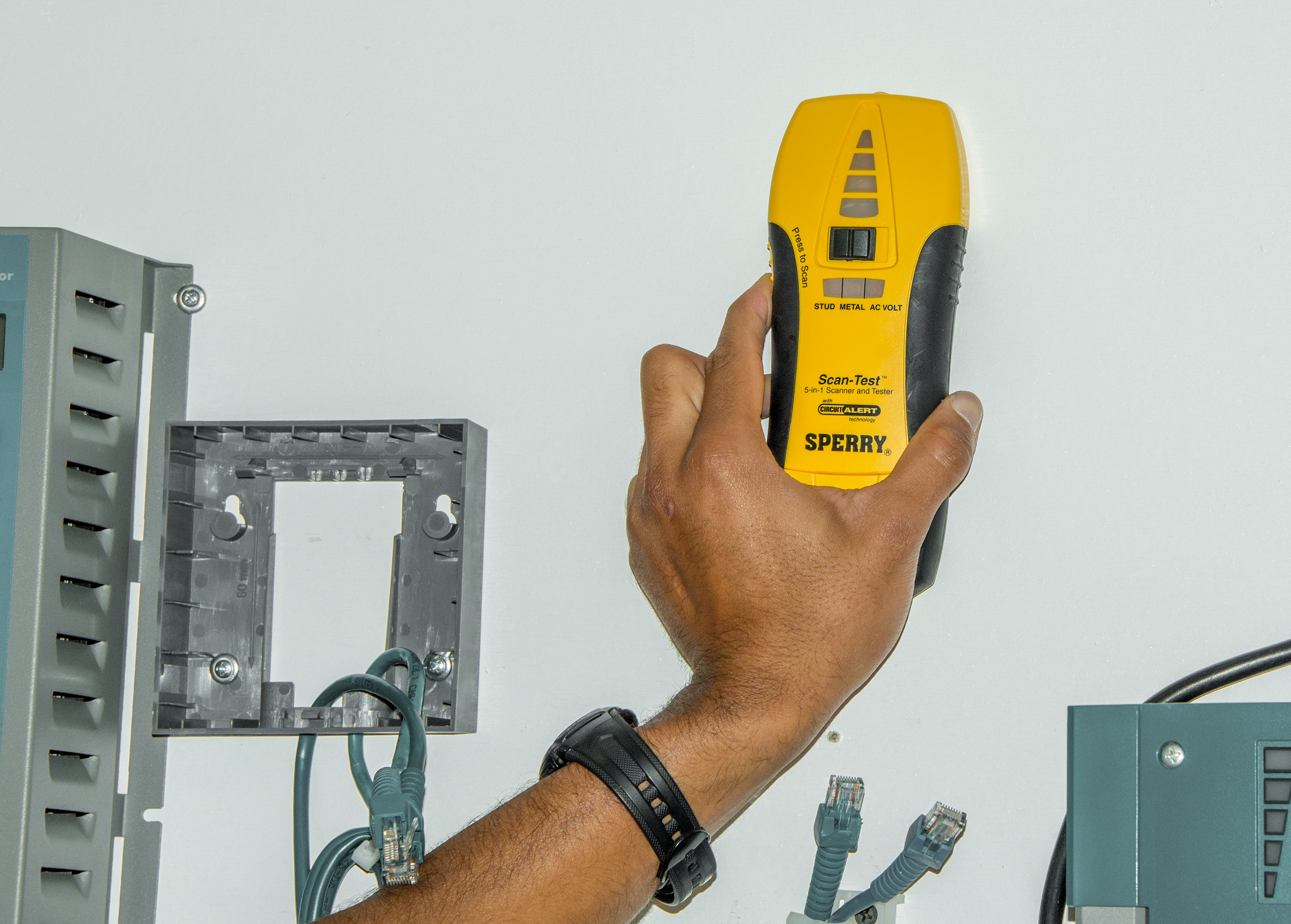

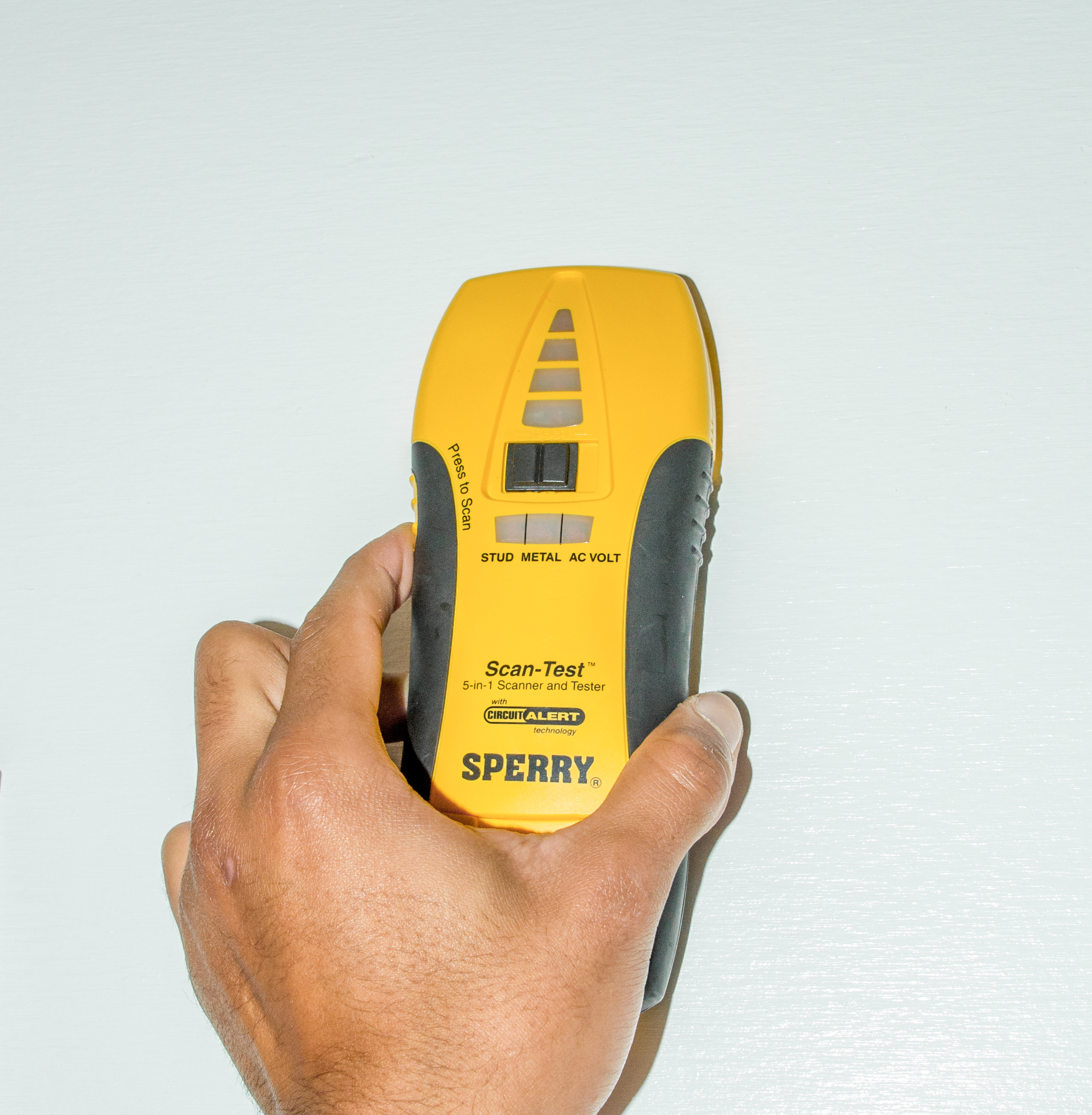

Locate studs, metal or AC voltage behind the wall before cutting or nailing. Whether searching for studs or simply installing bracing, knowing what lies beneath the surface can ensure a safe work environment. The Scan-Test integrates multiple technologies into one easy to use tool. Scan the wall to find either wood or metal studs for secure installations, while avoiding metal pipes or other metal objects behind the wall. Cuts or nicks in the insulation of wiring can cause long-term problems in electrical systems and even cause unsafe working conditions, so avoid nailing to a live wire behind the wall by scanning for AC voltage with Circuit Alert technology. Correctly wired receptacles are a must, and this 5-in-1 multi-scanner includes an integrated outlet tester with GFCI test functionality..

  • Combined multi-scanner and electrical tester simplifies installation of electrical boxes, switches and outlets.
  • 3-selectable modes: stud scan, metal scan or AC Voltage
  • Detects metal pipes or objects to a maximum depth of 2.5 inch through drywall
  • Scans and locates wood or metal studs at a depth up to 0.75 inch
  • Non-contact AC voltage detection (50-600V AC) to a maximum depth of 3.5 inch through drywall
  • Integrated 3-wire wall outlet with GFCI test functionality
  • Built-in metal tip for marking stud edge, pipe location or desired mounting point
  • Over-molded rubber grips
  • Audible and visual indication
  • Operates from one 9 volt battery

Warranty Limited Lifetime
