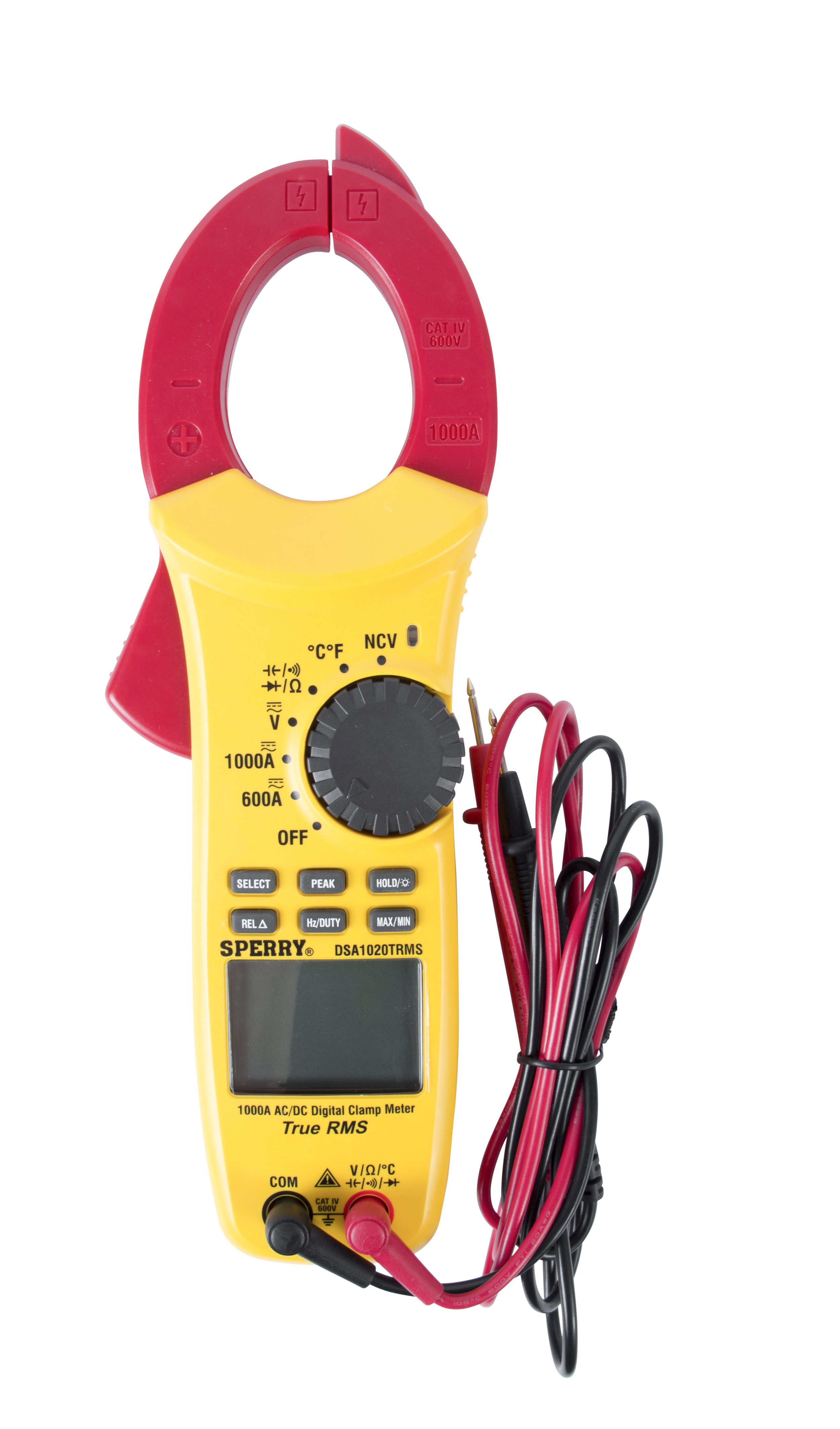

Sperry Instruments DSA1020TRMS True RMS Clamp Meter, Snap-Around, Digital, 10 Funct, 27 Auto-Range, 600V AC/DC, 1000A Current, Resist, Cont, Freq, Temp

Part # DSA1020TRMS

Engineered to exceed the expectations of the professional electrician the DSA1020TRMS is a 10 Function/ 27 range Digital Snap-Around Clamp Meter with More...

WHERE TO BUY
      BUY NOW

Engineered to exceed the expectations of the professional electrician the DSA1020TRMS is a 10 Function/ 27 range Digital Snap-Around Clamp Meter with precise True RMS circuitry and a 1000 Amp non-contact current reading. Designed with integrated non-contact voltage detection and a Min/Max data hold capable function which allows you to hold either minimum reading or maximum reading on the display. This Auto Ranging unit features 10 functions and 27 ranges measuring AC/DC V up to 600 V, non-contact AC voltage 80 - 600V and AC/DC Current up to 1000A. Able to test continuity, resistance, True RMS, frequency, and temperature (probe type) this unit features a backlit LCD display ideal for low light applications and an auto power of functionality to save battery life. cULus listed and CE approved with a CAT IV rating to 600V and includes a limited lifetime warranty. Unit ships with a convenient carrying case and 2 AAA batteries (required for use).

  • Measures AC/DC Current, AC/DC Voltage, Resistance, Continuity, Capacitance, Temperature, Diode Test, and includes integrated Non-Contact Voltage Detection
  • Precise True RMS circuitry
  • Auto-power off functionality saves battery life
  • Includes convenient carrying case
  • Peak hold function to display in-rush current
  • Capacitance and temperature measurement functionality
  • Operates from (2) AAA batteries

Warranty Limited Lifetime
RoHS Compliant (Restriction of Hazardous Substances Directive) ° Contact Compliance
Color Yellow
Out of Package Height (in) 10
Out of Package Width (in) 1.25
Out of Package Length/Depth (in) 2.25
Each in Package Height (in) * 12.5
Each in Package Width (in) * 7
Each in Package Length/Depth (in) * 2
Each in Package Weight (lbs) * 1.68
Inner Pack Weight (lbs) * 2
