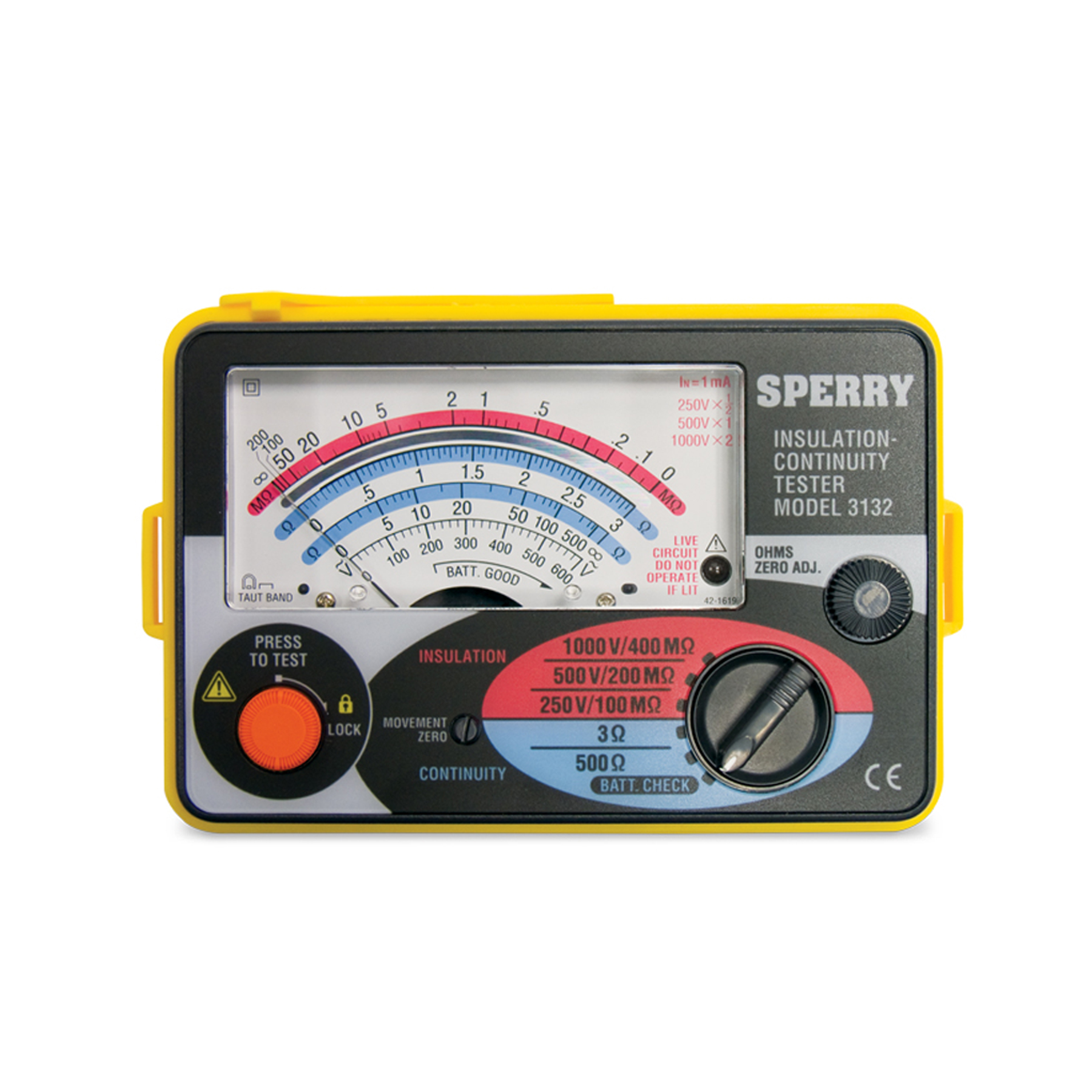

Analog Insulation Tester

Part # 3132MOV

Test the continuity and wire insulation of long wire runs. The 3132MOV is an analog tester with five ranges for insulation resistance measurement and More...

WHERE TO BUY
Each in Package Height (in) * 7.25
Each in Package Width (in) * 3.5
Each in Package Length/Depth (in) * 6.5
Each in Package Weight (oz) * 30.6
RoHS Compliant (Restriction of Hazardous Substances Directive) ° Yes - Compliant
Color Black

Test the continuity and wire insulation of long wire runs. The 3132MOV is an analog tester with five ranges for insulation resistance measurement and continuity testing (resistance tests) of low voltage installations.

  • Enhanced multi-colored scales for easy reading
  • Earth resistance read directly from scale plate
  • Compact and portable
  • Front panel zero ohm adjust
  • Quick battery check
  • 26 inch Leads with prode tips and aligator clips
  • Dust and drip proof construction to meet IP54 standards
  • Operates from (6) AA batteries
  • Live circuit neon indicator plus audible warning signal
  • Self-powered - no need for hand crank

Warranty Limited Lifetime
